MISUMI Products

▪ Dimension (mm): Ø 11
▪ Image Sensor: 1/3″ CMOS Color
▪ Pixel: 728 x 488 (NTSC / PAL)
▪ Pixel Size (µm): 6.35 x 7.4
▪ Image Area (mm): 4.623 x 3.611
▪ Interface: CVBS
▪ Shutter: Rolling
▪ Power: DC 5~12V
▪ Lens: 3.6 mm / F 6.0

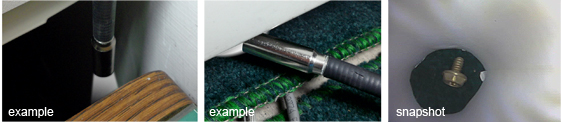

▪ Perfect for
1. Inspection: pipeline, sewage, air duct, machine
2. Disaster Rescue: earthquake, tornado, hurricane, snow avalanche, fire, flood
3. Insurance Claim Adjuster: inspect property damage, vehicle damage

1/6" (NTSC), 1/5" (PAL) CMOS Camera MO-L806

▪ Dimension (mm): Ø 9.2
▪ Image Sensor: 1/6" (NTSC), 1/5" (PAL) CMOS
▪ Pixel: 306 x 240 (NTSC), 366 x 288 (PAL)
▪ Pixel Size (µm): 7.86 x 7.5
▪ Image Area (mm): 2.39 x 1.8 (NTSC), 2.85 x 2.16 (PAL)
▪ Interface: CVBS
▪ Shutter: Rolling
▪ Power: DC 5~12V
▪ Illumination: 2 Lux / F 1.2

1/4.5" Snake Camera MO-L3411-3S

▪ Dimension (mm): Ø 11.5
▪ Image Sensor: 1/4.5″ CMOS
▪ Pixel: 648 x 488 (NTSC / PAL)
▪ Pixel Size (µm): 5.0 x 5.0
▪ Image Area (mm): 3.26 x 2.52
▪ Interface: CVBS
▪ Shutter: Rolling
▪ Power: DC 3.3V
▪ Sensitivity: 10 V/Lux.sec
▪ White LED x 8

1/4" MF Snake Camera MO-V3575V

▪ Dimension (mm): Ø 13.8
▪ Image Sensor: 1/4″ CMOS
▪ Resolution: 648 x 488 (NTSC / PAL)
▪ Pixel Size (µm): 5.55 x 5.55
▪ Image Area (mm): 3.5964 x 2.7084
▪ Interface: CVBS
▪ Shutter: Rolling
▪ Power: DC 5~12V
▪ Sensitivity: 3.53 V/Lux.sec
▪ White LED x 10 (Dimmer)
▪ 60~Infinity (Electronic MF)

1/4″ Snake Camera MO-V3506

▪ Dimension (mm): Ø 8.2
▪ Image Sensor: 1/4″ CMOS
▪ Resolution: 648 x 488 (NTSC / PAL)
▪ Pixel Size (µm): 5.55 x 5.55
▪ Image Area (mm): 3.5964 x 2.7084
▪ Interface: CVBS
▪ Shutter: Rolling
▪ Power: DC 5~12V
▪ Sensitivity: 3.53 V/Lux.sec
▪ White LED x 8 (Dimmer)

1/3.7" Snake Camera MO-V5506

▪ Dimension (mm): Ø 8.6
▪ Image Sensor: 1/3.7″ CMOS
▪ Pixel: 648 x 488 (NTSC / PAL)
▪ Pixel Size (µm): 6.0 x 6.0
▪ Image Area (mm): 3.8 x 2.9
▪ Interface: CVBS
▪ Shutter: Rolling
▪ Power: DC 3.3V
▪ Sensitivity: 8.2 V/Lux.sec
▪ White LED x 8 (Dimmer)

1/4" Snake Camera MO-V5006

▪ Dimension (mm): Ø 8.8
▪ Image Sensor: 1/4″ CMOS
▪ Pixel: 712 x 552 (640 x 480 output pixel array) (NTSC / PAL)
▪ Pixel Size (µm): 5.6 x 5.6
▪ Image Area (mm): 3.99 x 3.09
▪ Interface: CVBS
▪ Shutter: Rolling
▪ Power: DC 3.3V
▪ Sensitivity: 16 V/Lux.sec
▪ With UTC Function

▪ White LED x 8 (Dimmer)

1/3" Snake Camera MO-V5606

▪ Dimension (mm): Ø 9.3
▪ Image Sensor: 1/3″ CMOS
▪ Pixel: 728 x 488 (NTSC / PAL)
▪ Pixel Size (µm): 6.35 x 7.4
▪ Image Area (mm): 4.6228 x 3.6112
▪ Interface: CVBS
▪ Shutter: Rolling
▪ Power: DC 5~12V
▪ Sensitivity: 13.8 V/Lux.sec
▪ White LED x 8 (Dimmer)
