Misumi provides a variety of mini camera modules for Industrial inspection, Medical endoscope, Surveillance system, Law enforcement, Wildlife observation, and many other camera applications that require image capturing device. Besides ultra mini camera, our expertise in camera lens, IR light, and the use of special camera material enable Misumi cameras to become the master in disguise. Misumi also offers wifi video router module, UVC grabber/streaming media player module to enhance image capturing and displaying functions.

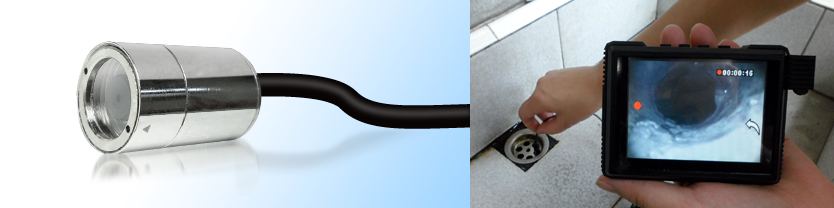

TUBE CAMERA SERIES
| Image | Model | Dimension(mm) | LED | pixel | Format | CVBS OUTPUT | UVC OUTPUT |
|---|---|---|---|---|---|---|---|
 |
MO-T1001 | (D)1.6 | N/A | 400 x 400 | 1/18" CMOS | NTSC/PAL |
|
|
MD-T1001 | (D)1.6 | N/A | 400 x 400 | 1/18" CMOS | UVC | |
 |
MO-V1001L | (D)2.5 | 3 | 400 x 400 | 1/18" CMOS | NTSC/PAL | |
|
MD-V1001L | (D)2.5 | 3 | 400 x 400 | 1/18" CMOS | UVC | |
 |
MO-V1003TL | (D)3.8x13.7 | 4 | 400 x 400 | 1/10" CMOS | NTSC/PAL | |
|
MD-V1003TL | (D)3.8x13.7 | 4 | 400 x 400 | 1/10" CMOS UVC | UVC | |
|
MO-V1003L | (D)3.8x13.7 | 4 | 400 x 400 | 1/10" CMOS | NTSC/PAL | |
 |
MO-V833L | (D)3.9x15 | 4 | 320 x 240 | 1/18" CMOS | NTSC/PAL | |
|
MD-V833L | (D)3.9x15 | 4 | 320 x 240 | 1/18" CMOS | *with UVC converter board | |
 |
MD-V20904L | (D)4.2x21.5 | 6 | 1280 x 720 (HD) | 1/9" CMOS | UVC | |
 |
MX-V1004L | (D)4.5 | 6 | 640 x 480 | 1/10" CMOS | NTSC/PAL | *with UVC converter board |
 |
MO-V13R3L-90 | (D)5x15(90degree) |
4 | 642 x 484 | 1/13" CMOS | NTSC/PAL | *with UVC converter board |
 |
MD-V31105L | (D)5.4x23 | 6 | 1920 x 1080 (full HD) | 1/6" CMOS | UVC | |
 |
MO-V8F4L | (D)5.5x27 | 4 | 648 x 488 | 1/8" CMOS | NTSC/PAL Endoscope application |
*with UVC converter board |
|
MO-V8S4L | (D)5.5x27 | 4 | 642 x 484 | 1/13" CMOS | NTSC/PAL Surveillance application |
*with UVC converter board |
|
MX-V1204L | (D)5.5x27 | 4 | 720 x 480(NTSC/ ITU-601), 720 x 576(PAL/ ITU-601) |
1/12" CMOS | NTSC/PAL | *with UVC converter board |
 |
MD-V3106L | (D)6 | 6 | 1920 x 1080 (full HD) | 1/6" CMOS | UVC | |
|
MD-V21106L | (D)6 x 25.8 | 6 | 1280 x 720(HD) | 1/9" CMOS | UVC | |
 |
MO-V0506L | (D)7.5x27 | 6 | 656 x 488 | 1/5" CMOS | NTSC/PAL | *with UVC converter board |
 |
MX-V5408L | (D)7.8x35 | 10 | 640 x 480 | 1/5" CMOS | NTSC/PAL | *with UVC converter board |
 |
MX-V5508L | (D)8 | 8 | 648 x 488 | 1/3.7" CMOS | NTSC/PAL | *with UVC converter board |
|
MO-V3506LS | (D)8x10.5 | 8 | 648 x 488 | 1/4" CMOS | NTSC/PAL | *with UVC converter board |
|
MO-V3506L | (D)8x15.7 | 8 | 648 x 488 | 1/4" CMOS | NTSC/PAL | *with UVC converter board |
 |
MO-V806L | (D)9.2x28 | 4 | 648 x 488 | 1/4" CMOS | NTSC/PAL | *with UVC converter board |
 |
MO-V3510L | (D)10x14 | 10 | 648 x 488 | 1/4" CMOS | NTSC/PAL | *with UVC converter board |
|
MX-V95710L | (D)10x30 | 8 | 648 x 488 | 1/4" CMOS | NTSC/PAL Night Vision |
*with UVC converter board |
|
MD-V4110L | (D)10 | 10 | 1280 x 720(HD)/ H.264 |
1/4" CMOS | UVC | |
|
MD-V4010L | (D)10x29.8 | 10 | 1280 x 720(HD) | 1/4" CMOS | UVC | |
 |
MO-V3575L | (D)12x25 | 10 | 648 x 488 | 1/4" CMOS | NTSC/PAL | *with UVC converter board |
 |
MO-V1675L | (D)15x41.2 | 4 | 360 k(PAL) ,250 k(NTSC) | 1/3" CMOS | NTSC/PAL | *with UVC converter board |
 |
MO-V5516L | (D)16x30 | 3(high power) | 648 x 488 | 1/4" CMOS | NTSC/PAL | *with UVC converter board |
NOTE:
1. Camera dimension may change, depending on different lens selected
2. LED light can be added to all camera by request. LED: white LED(standard), IR 940nm LED, IR 850nm LED(ordering in advance)
3. Cable length: Ordering in advance
