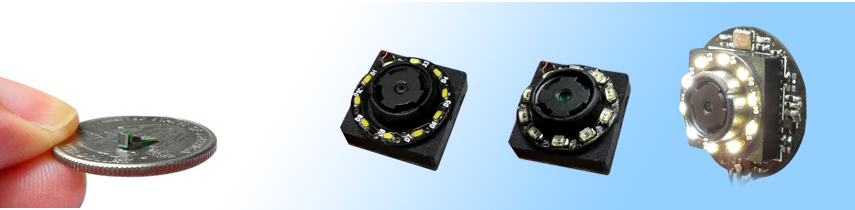

Misumi provides a variety of mini camera modules for Industrial inspection, Medical endoscope, Surveillance system, Law enforcement, Wildlife observation, and many other camera applications that require image capturing device. Besides ultra mini camera, our expertise in camera lens, IR light, and the use of special camera material enable Misumi cameras to become the master in disguise. Misumi also offers wifi video router module, UVC grabber/streaming media player module to enhance image capturing and displaying functions.
CAMERA MODULE SERIES
| Image | Model | Dimension(mm) | LED | Pixel | Format | System |
|---|---|---|---|---|---|---|
 |
MO-B1001-120 | (D)1.4 | order in advance | 400 x 400 | 1/18" CMOS | NTSC/PAL |
 |
MO-B1003T | (D)2.5 | order in advance | 400 x 400 | 1/10" CMOS | NTSC/PAL |
|
MD-B1003T | (D)2.5 | order in advance | 400 x 400 | 1/10" CMOS UVC | UVC |
 |
MO-B1003 | (D)2.5 | order in advance | 400 x 400 | 1/10" CMOS | NTSC/PAL |
|
MD-B1003 | (D)2.5 | order in advance | 400 x 400 | 1/10" CMOS UVC | UVC |
 |
TD-B20903 | (D)3.2x13.04 | order in advance | 1280 x 720 | 1/9" CMOS | UVC |
 |
TD-BL20903 | 3.2x12 | order in advance | 1280 x 720 | 1/9" CMOS | UVC |
 |
TD-B20903U | 3.2x12 | order in advance | 1280 x 720 | 1/9" CMOS | UVC |
 |
MO-B802-55 MO-B802-105 |
(D)3.5 | order in advance | 320 x 240 | 1/18" CMOS | NTSC |
|
MD-B802-105 MD-B802-105 |
(D)3.5 | order in advance | 320 x 240 720 x 480(with UCD-212) |
1/18" CMOS UVC | UVC |
 |
MO-B803-55 MO-B803-105 |
(D)3.5 | order in advance | 320 x 240 | 1/18" CMOS | NTSC |
|
MD-B803-55 MD-B803-105 |
(D)3.5 | order in advance | 320 x 240 720 x 480(with UCD-212) |
1/18" CMOS UVC | NTSC |
|
MD-B20904 | (D)3.6 | order in advance | 1280 x 720 | 1/9" CMOS | UVC |
 |
MO-B13R3-90 | (D)3.8 | order in advance | 642 x 484 | 1/13" CMOS | NTSC/PAL |
 |
MX-B1004 | (D)4 | order in advance | 640 x 480 | 1/10" CMOS | NTSC/PAL |
 |
MX-BL1204K | 4.5x2.4 | order in advance | 720 x 480(NTSC/ ITU-601) / 720 x 576(PAL/ITU-601) |
1/12" CMOS | NTSC/PAL |
 |
MO-B1204 | (D)4.5 | order in advance | 720 x 525(NTSC), 720 x 625(PAL) | 1/12" CMOS | NTSC/PAL |
 |
MO-B0804 | (D)4.8 | order in advance | 656 x 496 | 1/8" CMOS | NTSC/PAL |
 |
MO-BS0804 | (D)4.8 | order in advance | 656 x 496 | 1/4" CMOS | NTSC/PAL |
 |
MO-B8F4 (AGC 8X) MO-B8S4 (AGC 32X) |
(D)4.8 | order in advance | 648 x 488 | 1/8" CMOS | NTSC/PAL |
 |
TD-B31105 | (D)4.9x13.2 | order in advance | 1920 x 1080 | 1/6" CMOS | UVC |
|
MD-B31105 | (D)4.9 | order in advance | 1920 x 1080 | 1/6" CMOS | UVC |
 |
MD-B20005 | (D)5.2 | order in advance | 640 x 480 | 1/9" CMOS | UVC |
 |
MD-B200T5 | (D)5.2 | order in advance | 640 x 480 | 1/9" CMOS | UVC |
 |
MD-B21105 | (D)5.5 | order in advance | 1280 x 720 | 1/9" CMOS UVC | UVC |
 |
MX-B5407 | (D)7 | order in advance | 648 x 488 | 1/5" CMOS | NTSC/PAL |
 |
MO-B3406 | (D)7.4 | order in advance | 648 x 488 | 1/4.5" CMOS | NTSC/PAL |
 |
MO-B3506 | (D)7.7 | order in advance | 648 x 488 | 1/4" CMOS | NTSC/PAL |
|
MD-BL31107 | 7x22 | order in advance | 1920 x 1080 | 1/6" CMOS | UVC |
|
MD-B31107U | 7x22 | order in advance | 1920 x 1080 | 1/6" CMOS | UVC |
 |
MO-B35506 | (D)7.7 | order in advance | 648 x 488 | 1/4" CMOS | NTSC/PAL |
 |
AHD-S44788 CVI-S44788 TVI-S44788 PVI-S44788 |
8x8 | order in advance | 1280 x 720 | 1/4" CMOS | AHD CVI TVI PVI |
 |
MX-B5609 | (D)8.8 | order in advance | 728 x 488 | 1/3" CMOS | NTSC/PAL |
|
MX-B5509 | (D)8.8 | order in advance | 648 x 488 | 1/3.7" CMOS | NTSC/PAL |
 |
TD-B31109R | (D)9.6 | order in advance | 1920 x 1080 | 1/6" CMOS | UVC |
 |
MD-B4010 | (D)10 | order in advance | 648 x 488 | 1/4" CMOS UVC | UVC |
 |
MO-S35L | 11 x 11 | 10 | 648 x 488 | 1/4" CMOS | NTSC/PAL |
 |
MO-S75L | 11 x 11 | 10 | 648 x 488 | 1/4" CMOS | NTSC/PAL |
 |
MO-S4L | 13 x 13 | 10 | 80K(EIA), 100K(CCIR) | 1/4" CMOS | EIA/CCIR |
 |
MD-B5014 | (D)14 | order in advance | 2592 x 1944 | 1/4" CMOS | UVC |
|
MD-B31114R | (D)14 | order in advance | 1920 x 1080 | 1/6" CMOS | UVC |
NOTE:
1. Camera dimension may change, depending on different lens selected
2. LED light can be added to all camera by request. LED: white LED(standard), IR 940nm LED, IR 850nm LED(ordering in advance)
3. Cable length: Ordering in advance
