FYT-V164A03LH-109
1/11" Color CMOS 720p Low Temperature (USB 3.0)
Ø 3.9 x 16 mm
Description
| 1/11" Color CMOS camera with 1280 x 720 @ 60 fps resolution. MISUMI Mini Front View Camera module with excellent low-light sensitivity. |
Feature
| • 720p Resolution (1280 x 720 @ 60 fps) • 1/11" Color CMOS • View Angle 109° 31° / 63° / 65°/ 109° / 120° (Optional) |
• White LED / High-Intensity White LED / IR 850nm / IR 940 nm (Optional) • Interface USB 3.0 • USB 3.0 Type C Connector • Mini Camera, Compact Size and High Image Quality Camera Module |
Choose Model
✦ YT-T164A03-109
✦ YT-T164A03-109
✦ YT-T164A03LH-109 (With LED)
✦ YT-V164A03LH-109 (With LED / Dimmer)

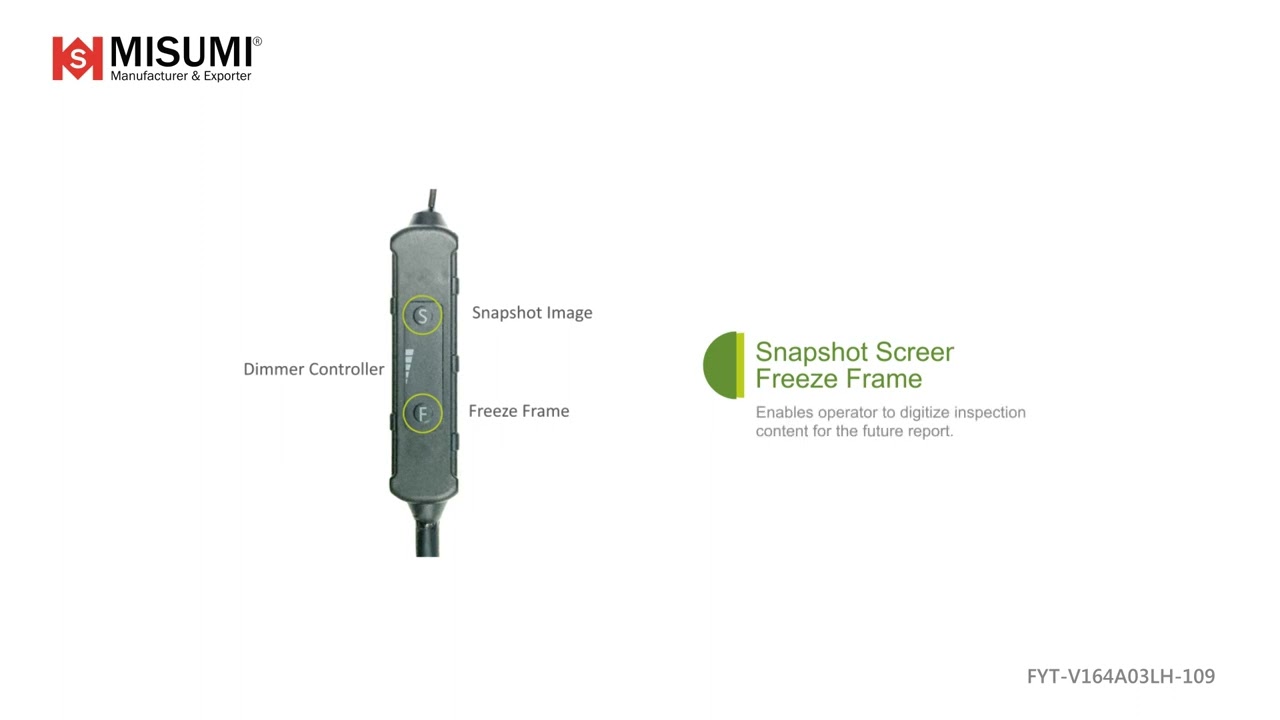

✦ FYT-V164A03LH-109 (With LED / Dimmer + Snapshot and Freeze)
※ FYT-V164A03LH-109 (Need Customized Request)
*For customizations, kindly email our sales team and specify your requests.
Add to Compare
Add to Inquiry
| Video Format | MJPEG / YUV |
| Image Sensor | 1/11" Color CMOS |
| Resolution | 1280 x 720 @ 60 fps |
| Pixel Size (μm) | 1.12 x 1.12 |
| Image Area (mm) | 1.45 x 0.91 |
| Scan Mode | Progressive |
| Sensitivity | 4500 e- |
| Dynamic Range | 72.2 dB @ 16x gain |
| S/N Ratio | 36.8 dB |
| Shutter | Rolling |
| Lens |
0.92 mm / F 4.5 |
| View Angle | 109° |
| Focus Distance (mm) | FID 45-20-80 |
| LED | High-Intensity White LED x 6 |
| Power Supply | DC 5 V |
| Power Current | 210 mA |
| Interface | USB 3.0 Type C |
| Dimension (mm) | Ø 3.9 x 16 |
| • Non-Destructive Testing • Industrial Inspection • Drain Pipe Inspection • Pipeline Inspection • Automotive Inspection • Engine Valves Inspection • Robotic Inspection • Tube Inspection • Air Duct and Vent Inspection • Machine Inspection |
• Machine Vision • Aerospace Inspection • Aviation Inspection • Security Monitoring • Life Sciences • Search and Rescue |
