USB CAMERA
Tube Camera
MD-V1000LH-120
1/36" Color CMOS 200p Basic
Ø 1.66 x 4.0 mm
Description

The MD-V1000LH-120 is a Ø 1.66 x 4.0 mm 1/36" color CMOS tube camera module, one of the world's smallest camera modules, delivering 200 x 200 resolution at 30 fps with excellent low-light sensitivity for extremely space-constrained imaging.

It features a 120° view angle lens, a built-in high-intensity white LED, and a UVC-compatible USB 2.0 interface that works with PC, Mac, and Android devices.

This camera module is manufactured in Taiwan by MISUMI, delivering a 60.2 dB dynamic range and 34.4 dB signal-to-noise ratio for clear, reliable imaging in the tightest spaces.

Feature
• 0.04 Megapixels
  (200 x 200 @ 30 fps)
• 1/36" Color CMOS
• View Angle 120°
• High-Intensity White LED x 1
• USB 2.0 Type A Connector
• Mini Camera, Compact Size and High Image Quality Camera Module
Choose Model

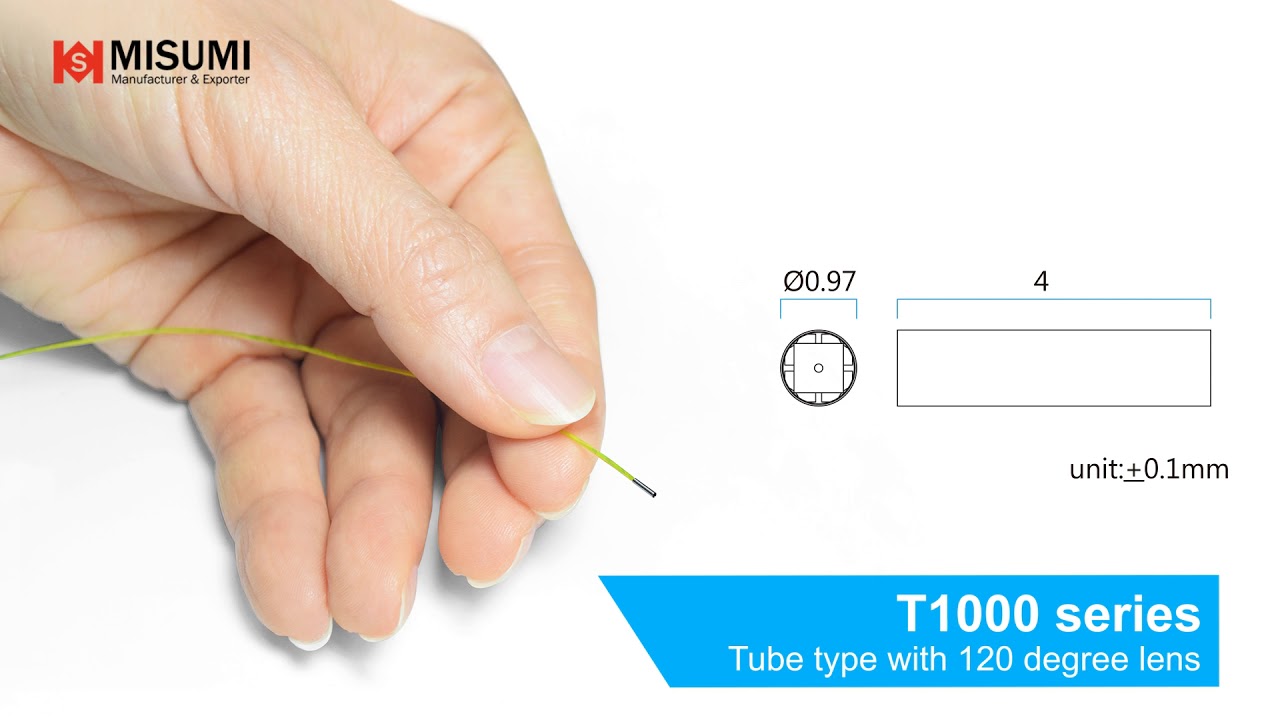

✦ MD-T1000-120
✦ MD-T1000-120 ✦ MD-T1000LH-120 (with LED) ✦ MD-V1000LH-120 (with LED / Dimmer) ✦ FMD-V1000LH-120 (with LED / Dimmer + Snapshot and Freeze) ※ MD-V1000LH-120 (Need Customized Request)
*For customizations, kindly email our sales team and specify your requests.
Video Format MJPEG / YUV
Image Sensor 1/36" Color CMOS
Resolution 200 x 200 @ 30 fps
Pixel Size (μm) 1.75 x 1.75
Image Area (mm) 0.364 x 0.364
Scan Mode Progressive
Sensitivity 1000 mV / (Lux-sec)
Dynamic Range 60.2 dB @ 1x gain
S/N Ratio 34.4 dB
Shutter Rolling
Lens 0.175 mm / F 2.8
View Angle 120°
Focus Distance (mm) FID 12-03-30
LED High-Intensity White LED x 1
Power Supply DC 5V (USB)
Power Current 120 mA
Connector USB 2.0 Type A
Dimension (mm) Ø 1.66 x 4.0



• Ultra-miniature endoscopic inspection in extremely tight spaces
• Micro-medical or dental imaging devices
• Wearable or embedded imaging where size is critical
• Cross-platform plug-and-play imaging for PC, Mac, or Android accessories
• Non-Destructive Testing
• Industrial Inspection
• Drain Pipe Inspection
• Pipeline Inspection
• Automotive Inspection
• Engine Valves Inspection
• Robotic Inspection
• Tube Inspection
• Air Duct and Vent Inspection
• Machine Inspection
• Machine Vision
• Aerospace Inspection
• Aviation Inspection
• Security Monitoring
• Life Sciences
• Search and Rescue


Download
◾ MD-V1000LH-120
